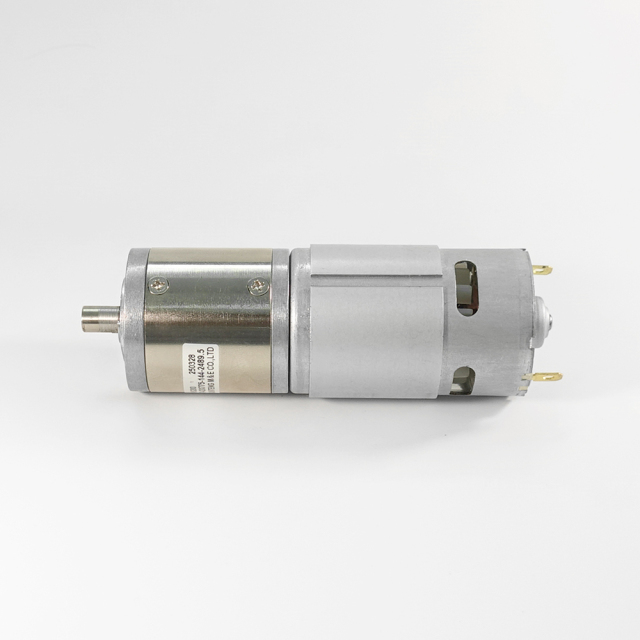

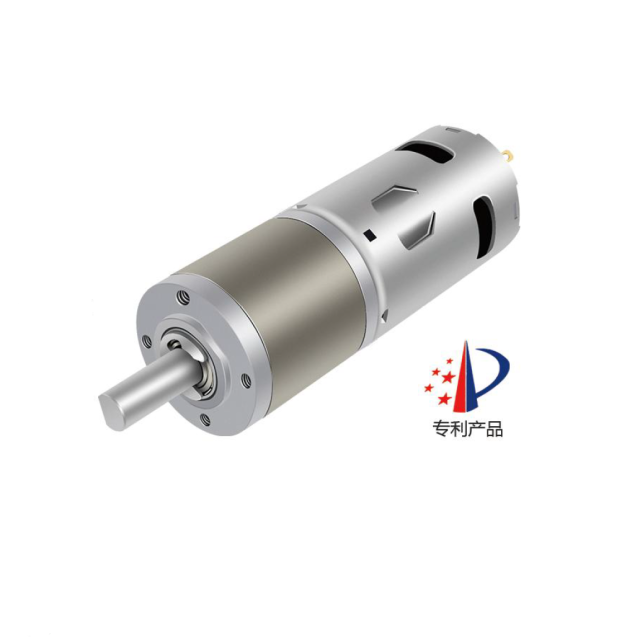

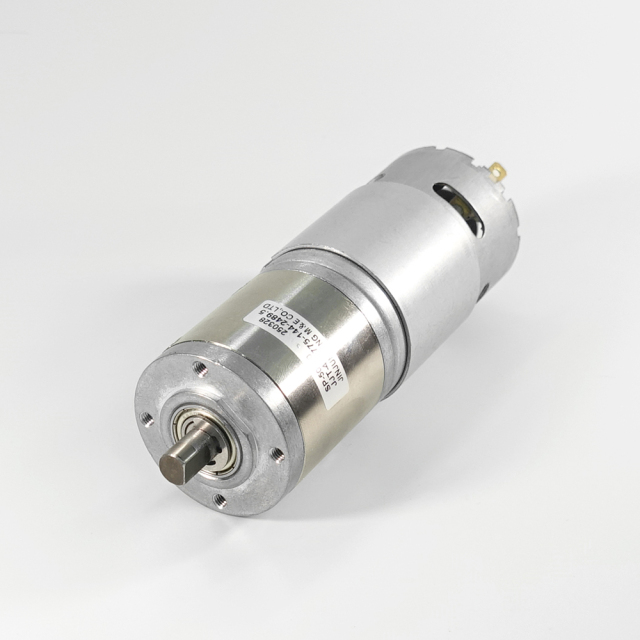

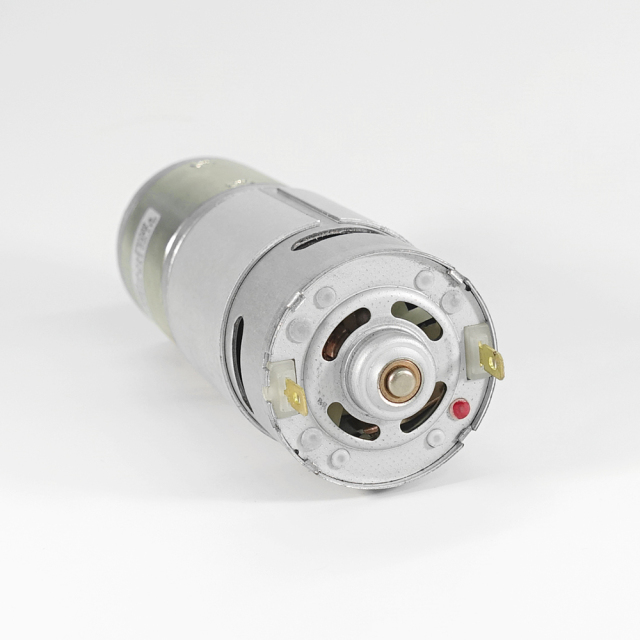

ZP42X-775 Planetary Gear Motor
No.ZP42X-775
Applicable to industries such as smart devices, power tools, financial machinery, industrial equipment, and medical equipment.
Product Model: ZP-42X775
Operating Voltage: 12V
Diameter: 36mm

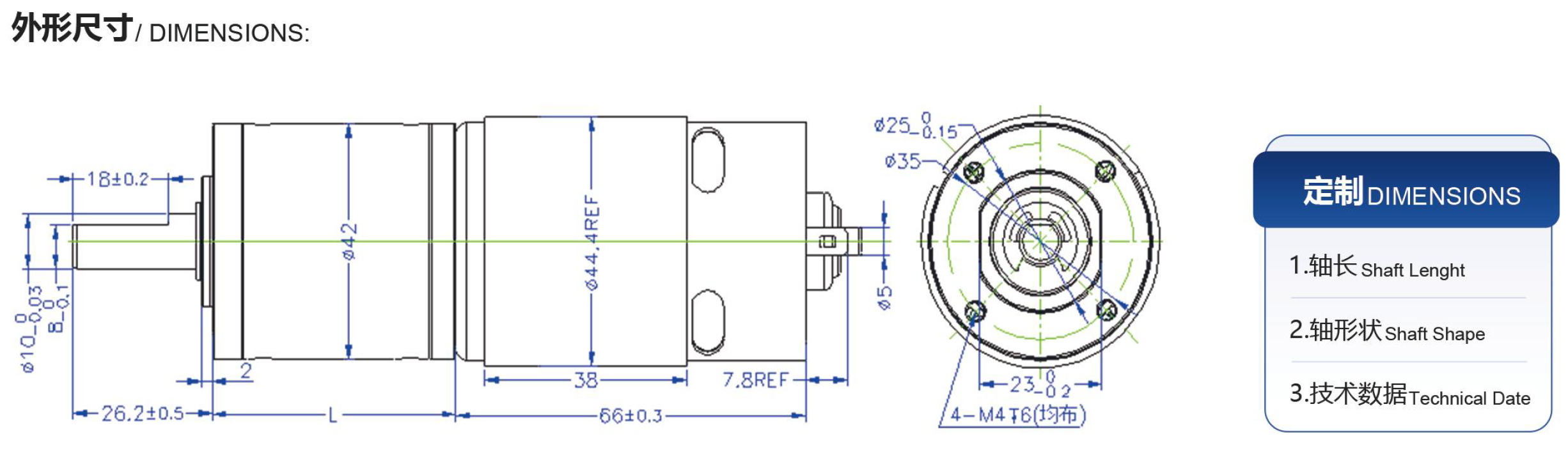

Overall Length: 66±0.3mm + L (housing length)

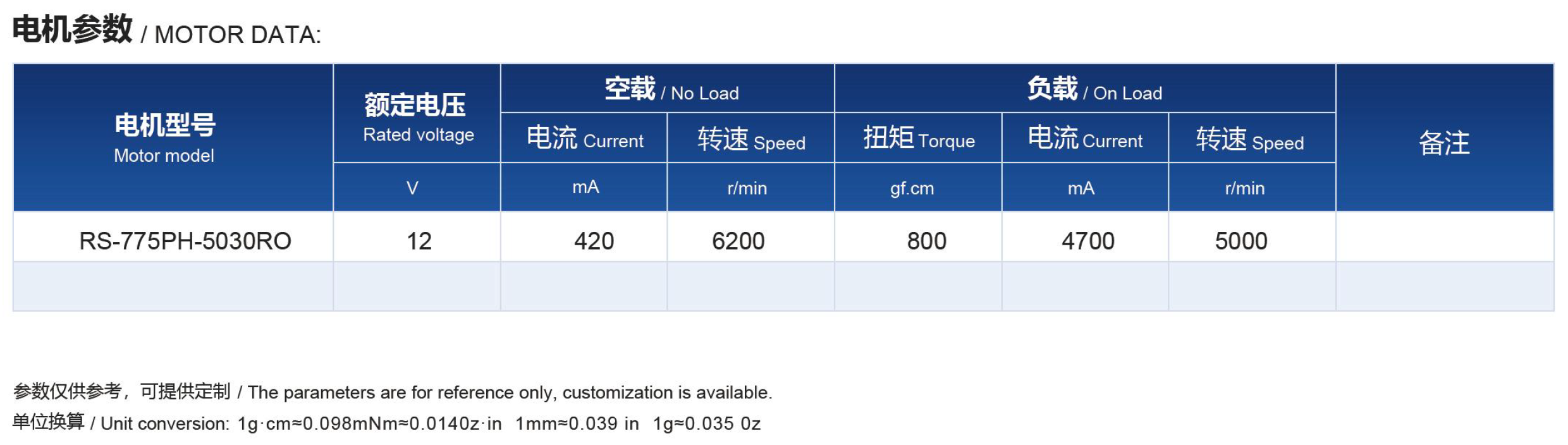

Motor Type: 755 DC brushed motor
Gearbox Type: Planetary gearbox

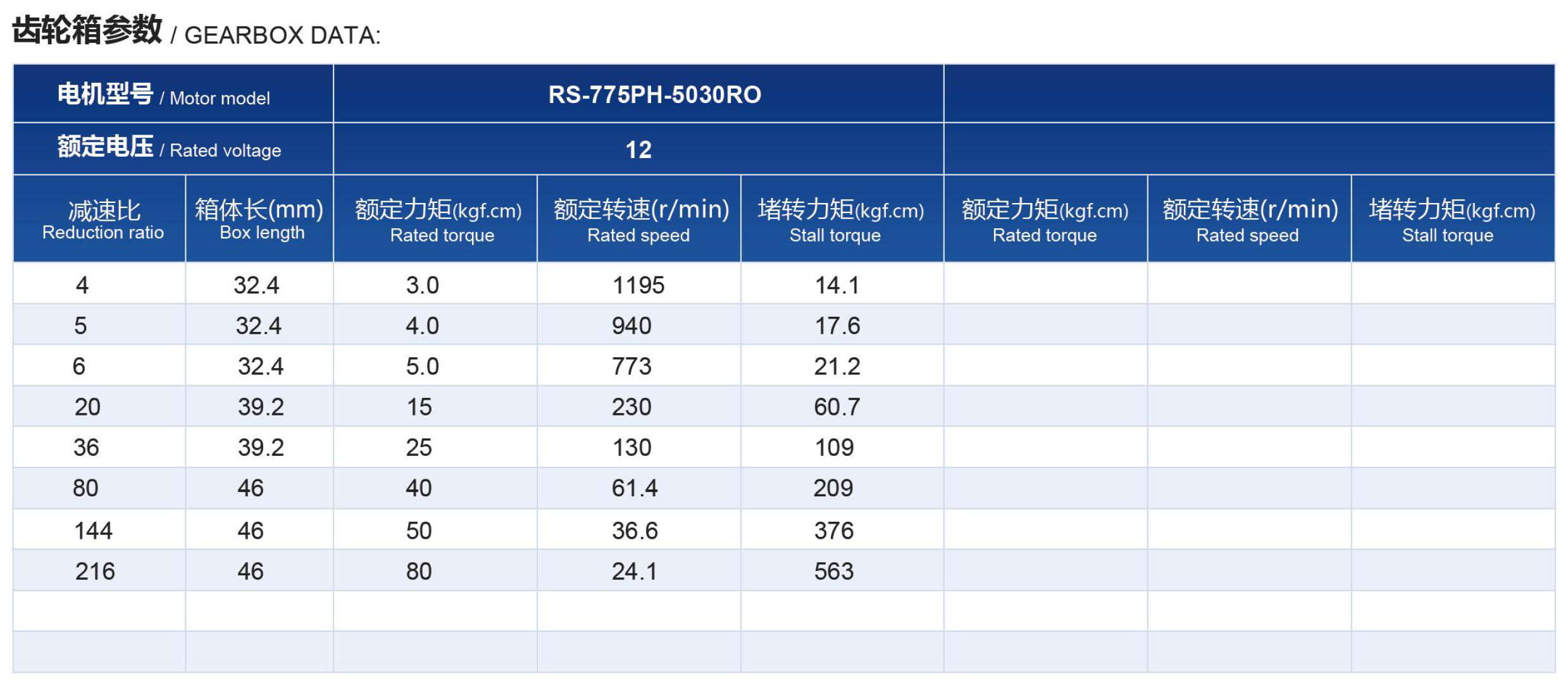

Gear Ratio: 4/5/6/20/36/80/144/216
Features:
Bi-direction
Metal and powder metallurgy gears
Sleeve bearing
DC Spur (Planet) Gear Case
Carbon Brush DC Motor
