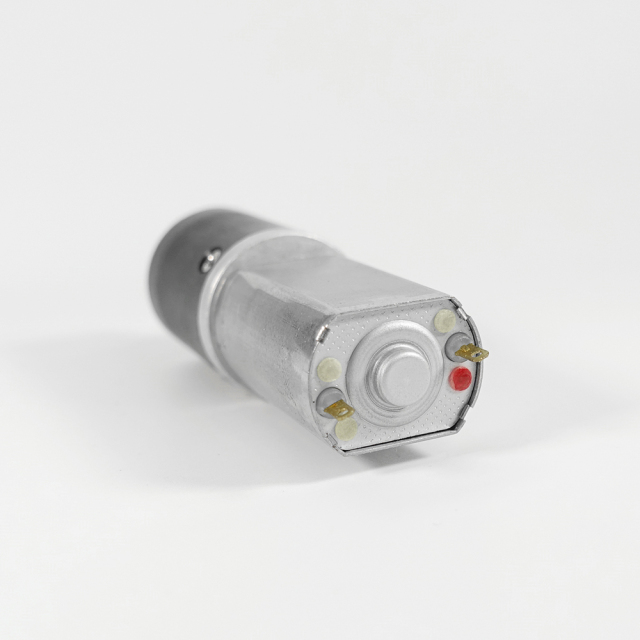

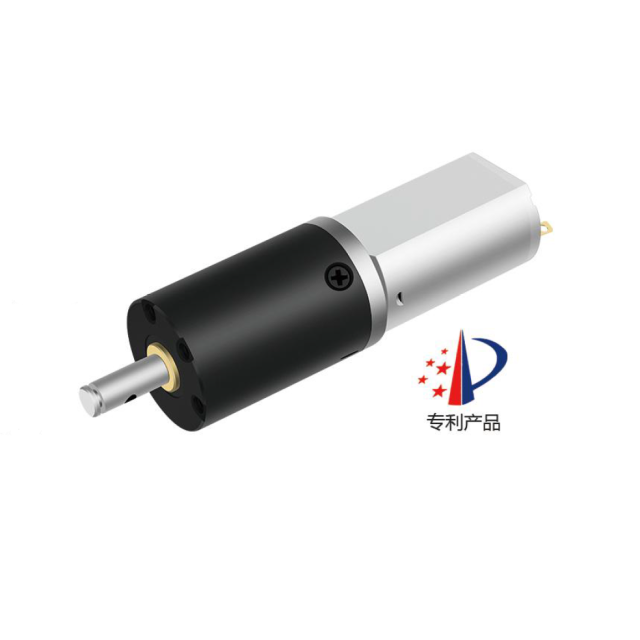

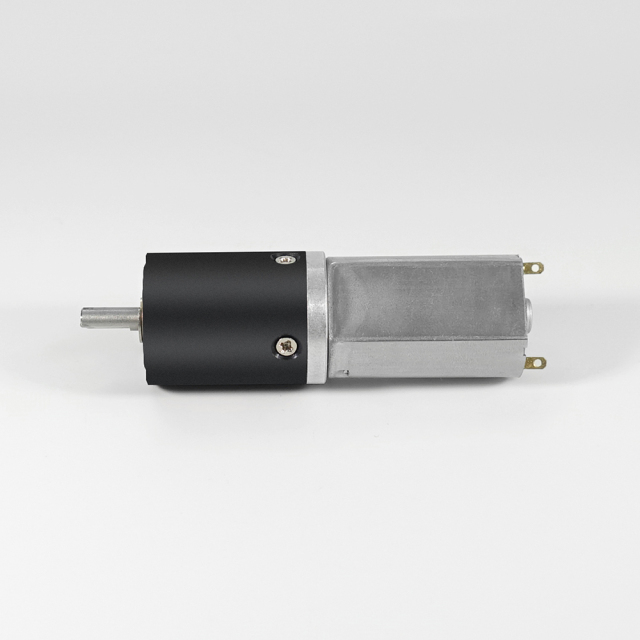

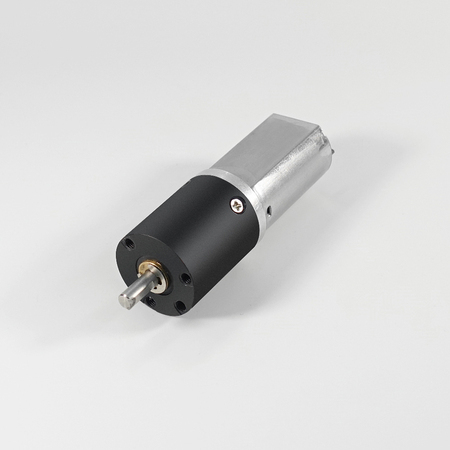

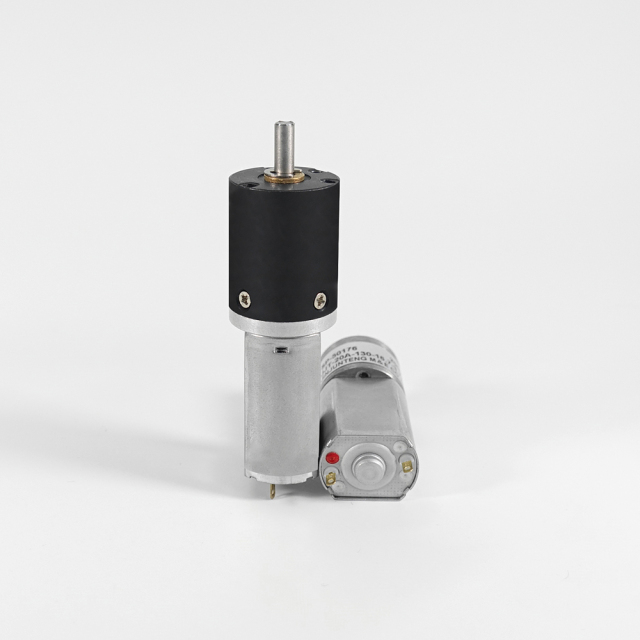

ZP22X-180 Planetary Gear Motor
No.ZP22X-180
Applicable to industries such as photocopiers, power tools, financial equipment, industrial equipment, and medical equipment.
Product Model: ZP22X-180
Operating Voltage: 24V

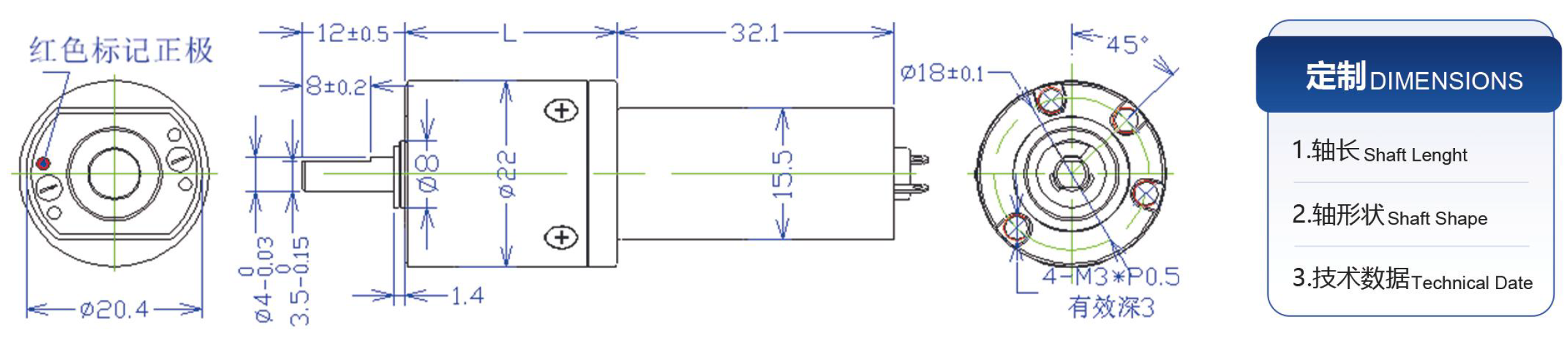

Diameter: 22mm
Overall Length: 32.1mm + L (housing length)

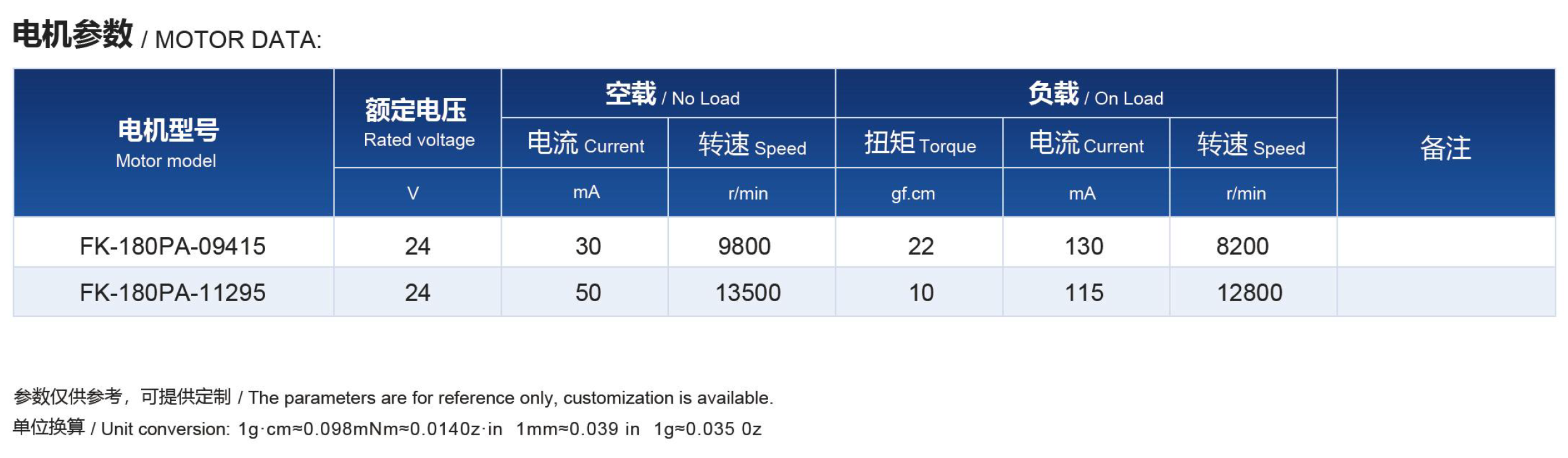

Motor Type: 180 DC brushed motor
Gearbox Type: Planetary gearbox

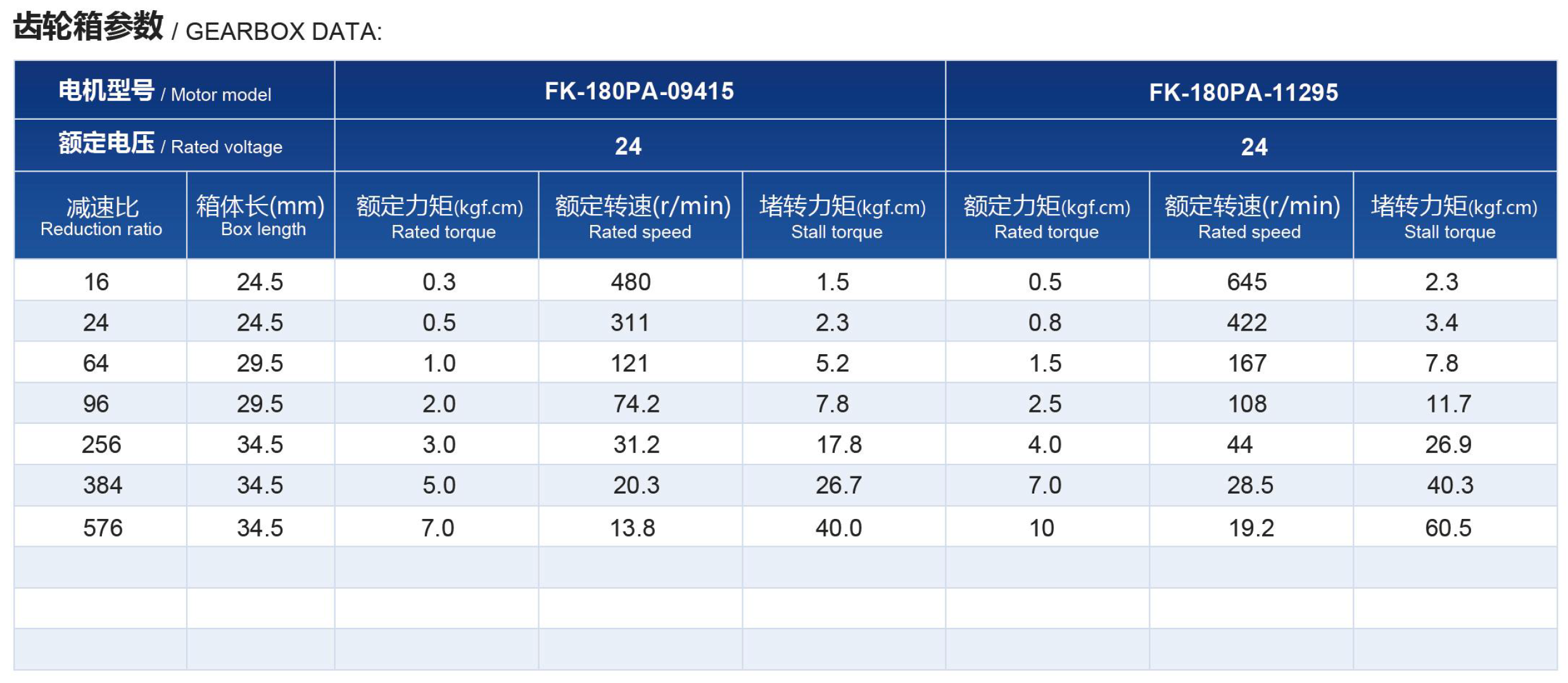

Gear Ratio: 16/24/64/96/256/384/576
Features:
Bi-direction
Metal and powder metallurgy gears
Sleeve bearing
DC Spur (Planet) Gear Case
Metal or Carbon Brush DC Motor
