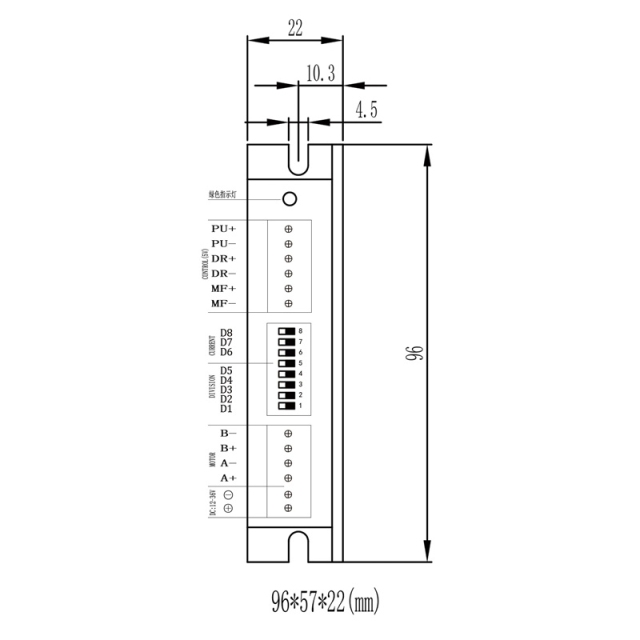

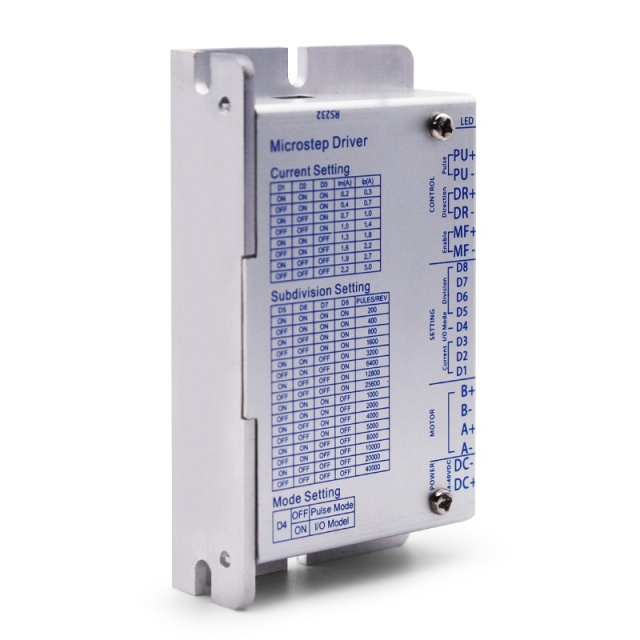

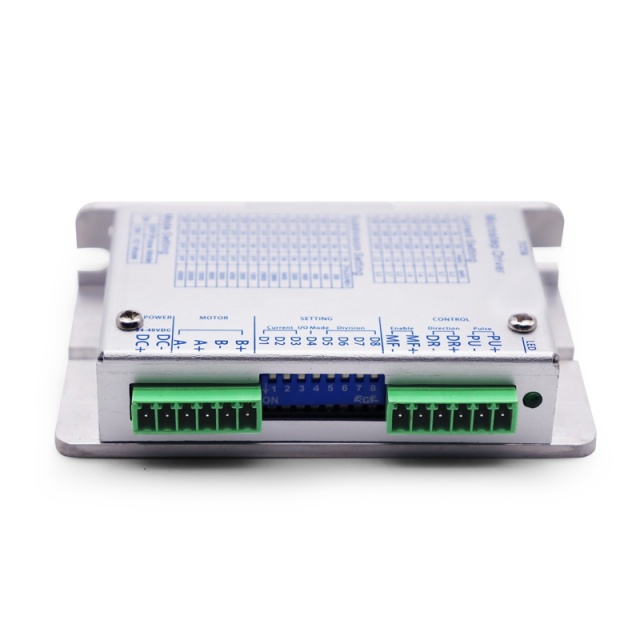

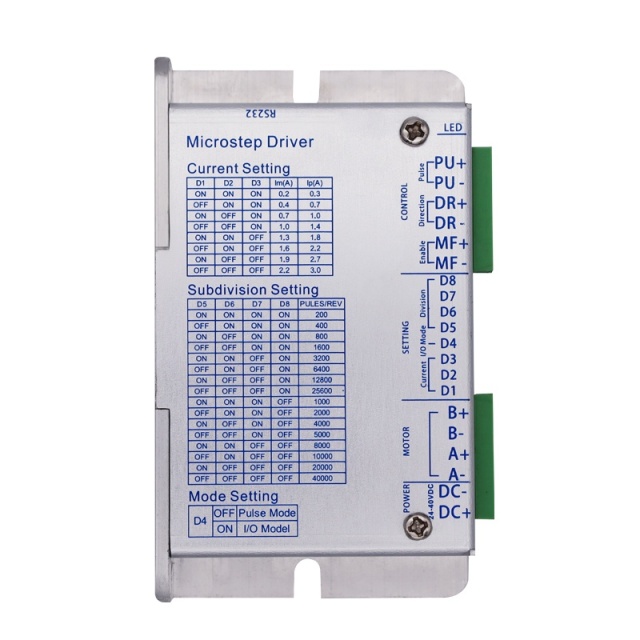

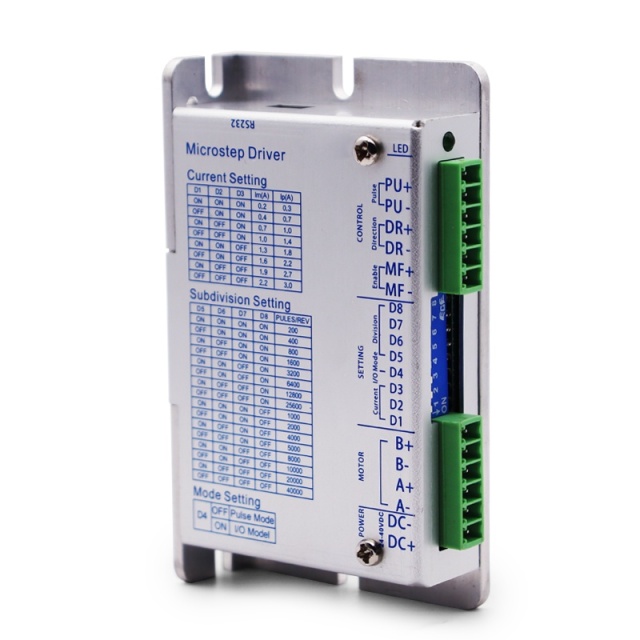

| 中文 | 英文 |
|---|---|
| ★电气参数 | ★Electrical Parameters |
| 工作电压 | Operating Voltage |
| DC24-80V;AC20~55V | DC24-80V; AC20~55V |
| 信号电压 | Signal Voltage |
| 4.2~28V | 4.2~28V |
| 信号频率 | Signal Frequency |
| ≤150KHz | ≤150KHz |
| 信号接口 | Signal Interface |
| 控制方式 | Control Method |
| 共阴、共阳、差分 | Common Cathode, Common Anode, Differential |
| 触发方式 | Trigger Method |
| 上升沿触发，下降沿可改 | Rising Edge Trigger, Falling Edge Configurable |
| 工作模式 | Operating Mode |
| 单、双脉冲，速度10模式（需设定） | Single/Dual Pulse, Speed 10 Mode (Requires Setting) |
| SP01锁机电流可调，需调试工具 | SP01 Locking Current Adjustable, Requires Debug Tool |
| 参数设定 | Parameter Setting |
| SP05脉冲平滑可调，需调试工具 | SP05 Pulse Smoothing Adjustable, Requires Debug Tool |
| SP17电机电感量可调，需调试工具 | SP17 Motor Inductance Adjustable, Requires Debug Tool |
| 适配电机 | Compatible Motors |
| 57全系列，86系列12Nm以下电机 | 57 Full Series, 86 Series Motors Below 12Nm |
| 电机释放功能有效 | Motor Release Function Active |
| 其他设定 | Other Settings |
| 掉电相位记忆功能有效 | Power-Off Phase Memory Function Active |
| 欠压、过压报警 | Undervoltage, Overvoltage Alarm |
| 故障保护 | Fault Protection |
| 过流报警 | Overcurrent Alarm |
| 过热报警 | Overheat Alarm |
This drive is powered by DC. Please ensure that the AC voltage does not exceed 32V.
Do not plug or unplug cables while the power is on.
The drive is not sealed. Do not allow conductive foreign objects such as screws or metal shavings, or flammable foreign objects to enter the interior. Take care to prevent moisture and dampness during storage and use.
The drive is a power device. Please ensure adequate ventilation and heat dissipation in the working environment.
| D6 | Self-test switch |
|---|---|
| OFF | External pulse |
| ON | At a speed of 30 rpm |
Note: 1. When D6 is ON, the self-test switch is OFF.
2. When D6 is OFF, the self-test switch is ON.
| D5 | Pulse Mode |
|---|---|
| ON | Dual Pulse: PU is the forward pulse stepping signal, DR is the reverse stepping pulse signal |
| OFF | Single Pulse: PU is the stepping pulse signal, DR is the direction control signal |
