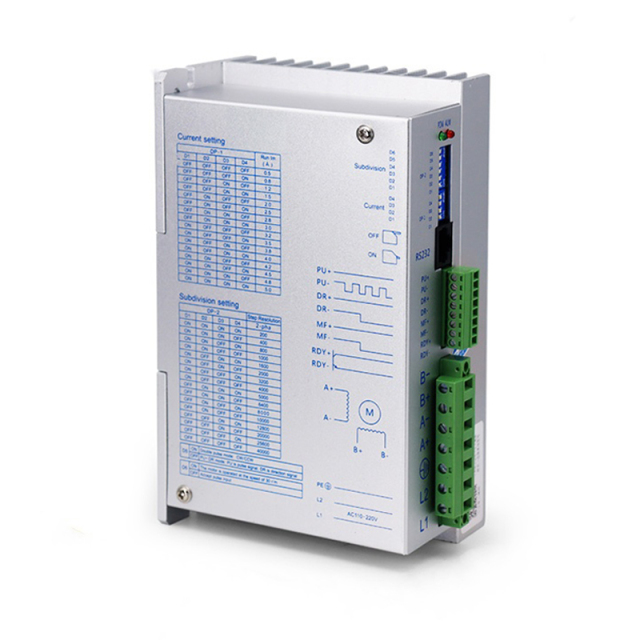

Two-Phase High-Performance Hybrid Stepper Driver

Name: Two-Phase High-Performance Hybrid Stepper Driver
Brand: ZP MOTORS
SKU: ZPD2522M
Availability: InStock
Rating: 5 (1 reviews)

No.ZPD2522M

Product Overview:
● AC 110-220V input, eliminating the need for a transformer
● High performance, low price
● Features 16-step equal-angle constant torque microstepping, with a higher resolution of 40000 pulses/revolution
● Higher response frequency up to 150Kpps
● Can drive 86 series, 110 series, and motors with torque of 16Nm or less
● High motor output power, excellent high-speed performance, and high efficiency

ZPD2611M is a two-phase stepper motor driver based on DSP control. It is a new generation fully digital stepper motor driver that integrates an advanced DSP control chip with a unique control circuit. With a driving voltage of AC60-110V, it is compatible with various models of two-phase hybrid stepper motors with a current below 6.0A and an outer diameter of 57-110mm. The driver incorporates a circuit based on principles similar to servo control, enabling smooth motor operation with almost no vibration or noise. The positioning accuracy can reach up to 40,000 pulses per revolution. This product is widely used in large and medium-sized CNC equipment requiring high resolution, such as engraving machines, medium-sized CNC machine tools, computerized embroidery machines, and packaging machinery.

GET A QUOTE

Description

Product Introduction

● High performance, low price
● Features 16-step equal-angle constant torque microstepping, with a higher resolution of 40000 pulses/revolution
● Higher response frequency up to 150Kpps
● When the stepping pulse stops for more than 100ms, the coil current automatically reduces to half of the set current.
● Opto-isolated signal input/output
● Drive current adjustable in 16 steps from 0.5A/phase to 5.0A/phase
● Single power supply input, voltage range: AC90-240V
● Over-temperature 75℃ alarm (3 flashes), undervoltage 65VAC alarm (1 flash), overvoltage 265VAC alarm (2 flashes), overcurrent alarm (4 flashes)
● Power-off phase memory function (the system automatically memorizes the phase when the device is powered off due to accidental or human reasons)
● I/O signals, all input signals are opto-isolated, signal level compatible with 5-24V
● Pulse smoothing function for smoother motor operation at low speeds, smoothing level is adjustable
● Adjustable motor inductance to maximize the performance of the stepper motor

中文	英文
★电气参数	★Electrical Parameters
工作电压	Operating Voltage
AC90~240V	AC90~240V
信号电压	Signal Voltage
4.2~28V	4.2~28V
信号频率	Signal Frequency
≤150KHz	≤150KHz
信号接口	Signal Interface
控制方式	Control Mode
共阴、共阳、差分	Common Cathode, Common Anode, Differential
触发方式	Trigger Mode
上升沿触发，下降沿可改	Rising Edge Trigger, Falling Edge Adjustable
工作模式	Operating Mode
单、双脉冲，速度10模式（需设定）	Single/Dual Pulse, Speed 10 Mode (Requires Setting)
SP01锁机电流可调，需调试工具	SP01 Locking Current Adjustable, Requires Debugging Tool
参数设定	Parameter Setting
SP05脉冲平滑可调，需调试工具	SP05 Pulse Smoothing Adjustable, Requires Debugging Tool
SP17电机电感量可调，需调试工具	SP17 Motor Inductance Adjustable, Requires Debugging Tool
适配电机	Compatible Motors
86系列、110系列中16Nm以下电机	86 Series, 110 Series Motors Under 16Nm
电机释放功能有效	Motor Release Function Active
其他设定	Other Settings
脉冲停止相位记忆功能有效	Pulse Stop Phase Memory Function Active
故障保护	Fault Protection
欠压、过压报警	Under-voltage, Over-voltage Alarm
过流报警	Over-current Alarm
过热报警	Over-temperature Alarm

Precautions

The input voltage must not exceed AC 260V. Please connect a voltage stabilizer or isolation transformer when grid fluctuations are significant.
The input pulse signal is active on the falling edge. For rising edge control, internal driver parameters need to be set.
When the driver temperature exceeds 75°C, the driver stops working and the fault indicator ALM lights up. The driver requires a power restart to resume operation only after the temperature drops to 50°C. In case of overheating protection, please install a heat sink.
If the overcurrent (load short-circuit) fault indicator ALM lights up, please check the motor wiring and other short-circuit faults. After troubleshooting, a power restart is required to recover.
If the no-motor fault indicator ALM lights up, please check the motor wiring. After troubleshooting, a power restart is required to recover.

Self-test

D6	Self-test switch
OFF	External pulse
ON	At a speed of 30 rpm

Note: 1. When D6 is ON, the self-test switch is OFF.
2. When D6 is OFF, the self-test switch is ON.

Mode Settings

D5	Pulse Mode
ON	Dual Pulse: PU is the forward pulse stepping signal, DR is the reverse stepping pulse signal
OFF	Single Pulse: PU is the stepping pulse signal, DR is the direction control signal

Current Setting

Microstepping Setting
