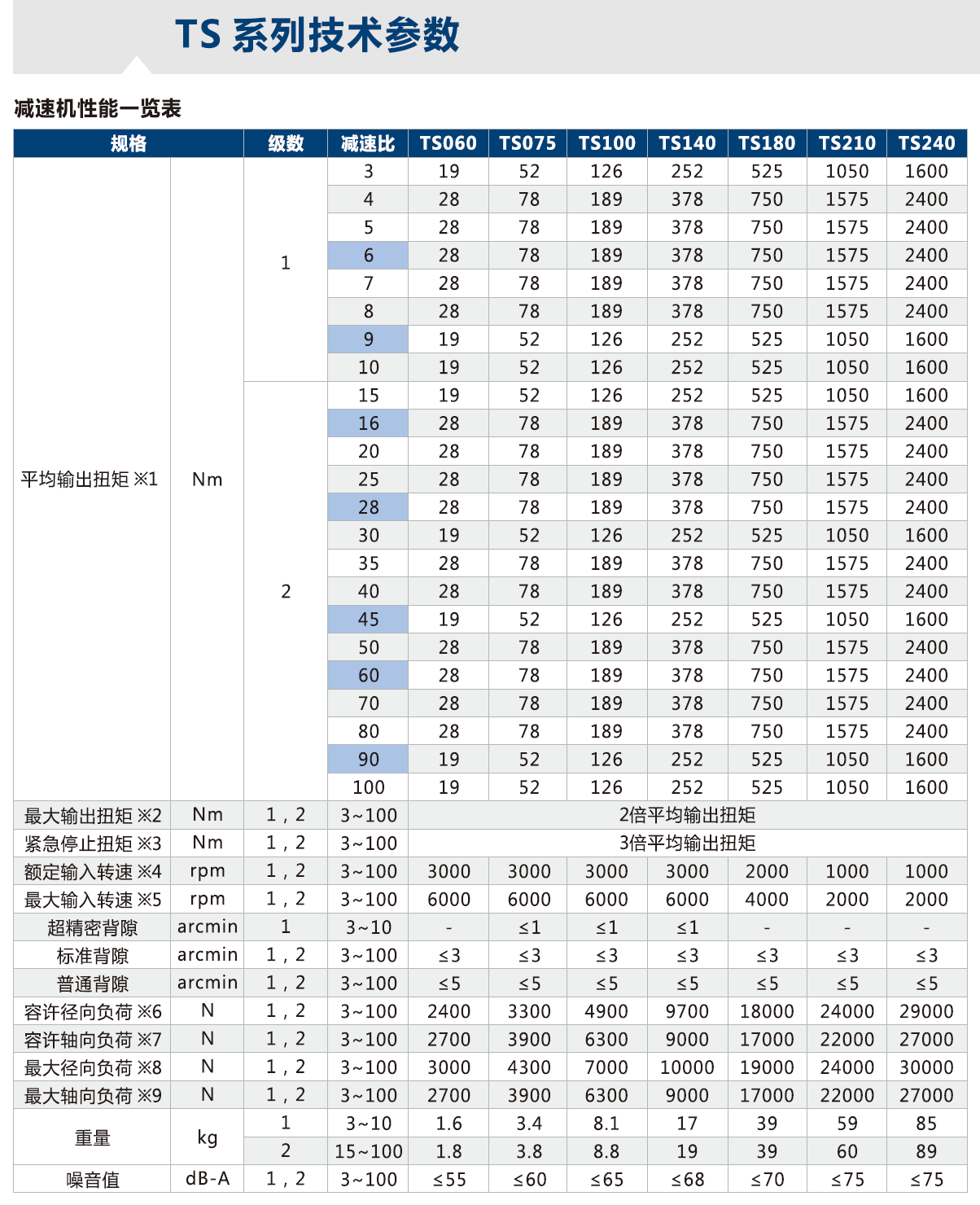

Note: The reduction ratios marked in blue are special ratios and are not currently in mass production. Please contact our company if needed.
Note: Continuous operation service life is below 10,000 hours.
※1 Value when the service life is 20,000 hours at the rated input speed.
※7 Value when the service life is 20,000 hours at the rated input speed.
※2 Maximum allowable value during start/stop (acting on the shaft center, when axial load is 0).
※3 Maximum allowable value upon impact (frequency: 1000 times).
※8 Maximum allowable radial load.
※4 Maximum allowable rated input speed during operation.
※9 Maximum allowable axial load.
※5 Maximum allowable input speed under non-continuous operation conditions.
※6 Value when the service life is 20,000 hours at the rated input speed (acting on the shaft center, when axial load is 0).
※7 Value when the service life is 20,000 hours at the rated input speed (acting on the shaft center, when axial load is 0).
※8 Maximum allowable radial load.
※9 Maximum allowable axial load.
