High Precision: Backlash of less than 3 arc minutes, achieving ultra-high precision positioning with a minimum of 1 arc minute. Quiet Operation: Uses helical gears for smooth and quiet operation. High Efficiency: Single-stage transmission efficiency of over 95%, and over 90% for double-stage. Motor Connection: Can be connected to any motor in the world. No Grease Leakage: Uses high-viscosity lubricant (-20° to +200°C), completely preventing oil leakage. Easy Maintenance: Maintenance-free for the entire product lifespan.

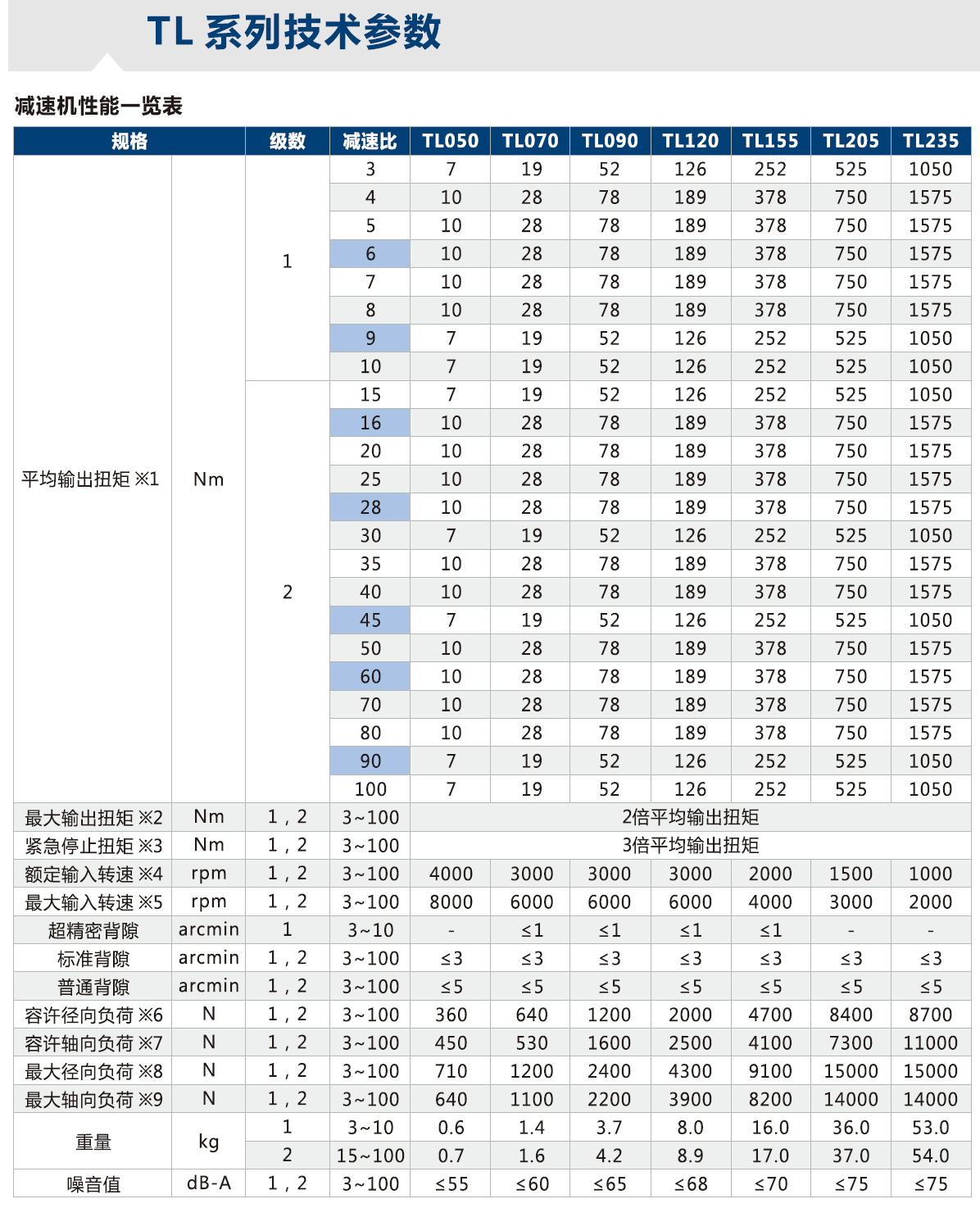

Note: The reduction ratios marked in blue are special ratios and are not currently in mass production. Please contact our company if needed.
Note: Continuous operation lifespan is less than 10,000 hours. *1 Lifespan is 20,000 hours at rated input speed. *2 Maximum allowable value during start and stop (applied to the shaft center, with zero axial load). *3 Maximum allowable value during impact (frequency: 1000 times). *4 Maximum allowable value of rated input speed during operation. *5 Highest allowable input speed under non-continuous operation conditions. *6 Value at 20,000 hours lifespan at rated input speed (applied to the shaft center, with zero axial load). *7 Value at 20,000 hours lifespan at rated input speed (applied to the shaft center, with zero axial load). *8 Maximum allowable radial load. *9 Maximum allowable axial load.
