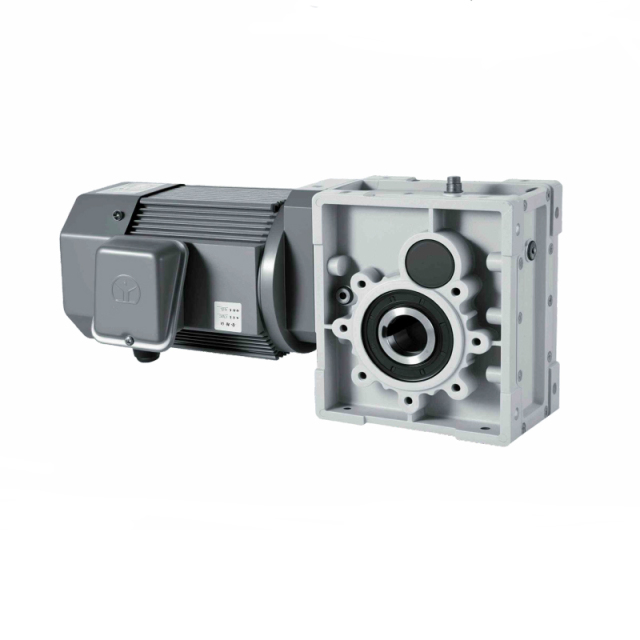

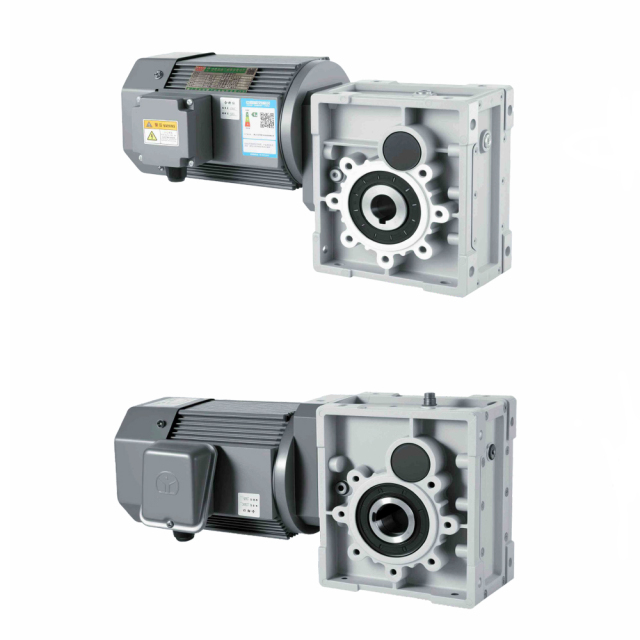

BKM Gear Reducer Hypoid Gear Motor
No.BKM Series
Equipped with three-phase asynchronous motor
Product Name: BKM Gear Reducer, Hypoid Gear Motor
Category: Gear Reducer
Gear Type: Cylindrical Gear Reducer
Mounting Type: Vertical/Horizontal
Layout: Coaxial
Tooth Surface Hardness: Hardened Tooth Surface
Input Speed: 1-3000 (rpm)
Rated Power: 0.1-200 (kW)
Output Speed Range: 0.2-2000 (rpm)
Operating Torque: 1.8-1760 (N.m)
Number of Stages: Single Stage
Reduction Ratio: 7.5
