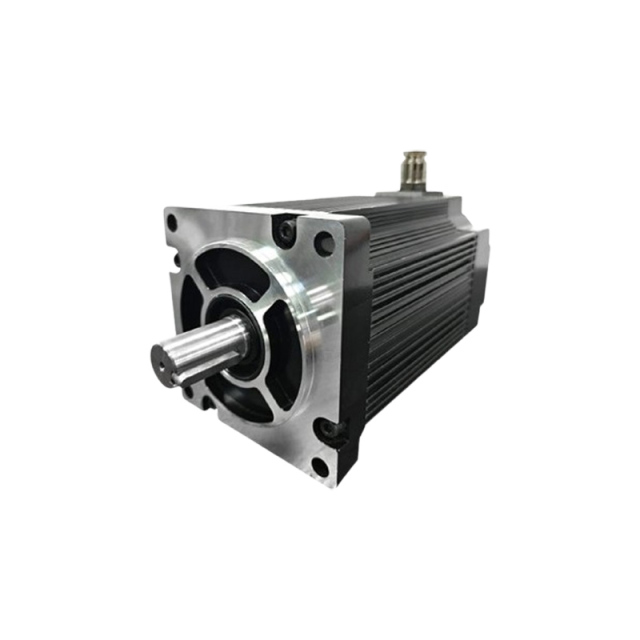

Reliable explosion-proof structure, suitable for high-risk environments such as petrochemical and mining industries.
Strong torque (typically 2.7-12 N·m), capable of heavy-duty operation.
Precise step angle (1.2°-1.8°), even higher accuracy after subdivision, no cumulative error.
Low noise and smooth operation, low electromagnetic interference, suitable for demanding applications.
Robust structure with no vulnerable parts, low failure rate, and easy maintenance.
| Motor Model |
Holding Torque (N·m) |
Step Angle (°) |
Phase Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Rotor Inertia (g·cm²) |
Driver Voltage (VDC) |
Length LL (mm) |
Weight (kg) |
| 130ZP350A |
23 |
1.2 |
5.2 |
0.95 |
9.5 |
25 |
110-220 |
188 |
15 |
| 130ZP350B |
35 |
1.2 |
5.2 |
1.3 |
13.1 |
35 |
110-220 |
244 |
20 |
| 130ZP350C |
50 |
1.2 |
5.2 |
1.7 |
17 |
45.5 |
110-220 |
300 |
25 |
