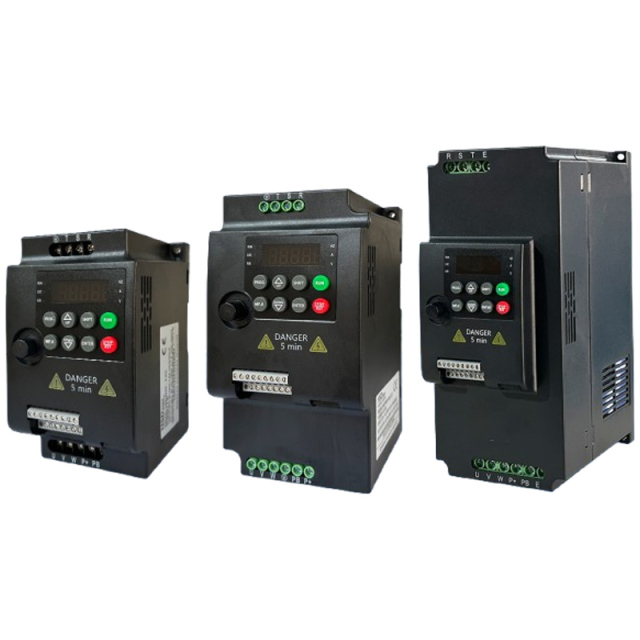

3000 Series Mini Low-Power Frequency Inverters: 0.75KW-11KW Multiple Power Options Available
Single-phase 220V/Three-phase 380V inverters utilize IPM/PIM as their core technologies, ensuring high overall reliability.
Output torque reaches 150% at 1Hz, providing high output torque and strong starting torque.
Built-in PID and a simple PLC, offering strong anti-interference capabilities.
Compact structure, small size, and easy installation make this an ideal replacement product with richer functions and simpler operation. It can be used in applications with high noise requirements, meeting the control needs of various situations.
Multiple Installation Modes 0.75~160KW: Wall-mounted, flange (through-wall) installation 200~400KW: Floor-mounted installation Note: The above power ranges are based on the G-type unit.
Easy Fan Replacement Fan replacement is simple, facilitating cleaning, maintenance, and replacement.
The entire product series supports a common DC bus scheme, reducing power loss in the braking resistor. However, careful calculation of the inrush current and input AC system capacity is necessary.
3000 Series Inverter Overview
The 3000 series is a powerful, high-performance current vector inverter capable of controlling asynchronous and permanent magnet synchronous motors. Building upon the 3000 series technology, it adds PG control, supports various PG cards, supports multi-motor switching, and can be used to drive various automated production equipment in textiles, papermaking, fiber drawing, machine tools, packaging, food processing, and other industries.
3000 Excellent Performance
- Supports Vector Control of Multiple Motors
Supports vector control of three-phase AC asynchronous motors and three-phase AC synchronous motors, and supports vector control of permanent magnet synchronous motors without absolute position feedback. Switching between synchronous and asynchronous motors is possible.
- Supports Multiple Encoders
- New Sensorless Vector Control Performance;
Sensorless vector control allows for stalled operation, outputting 150% of rated torque at 0.5Hz. Sensorless vector control reduces sensitivity to motor parameters, improving field adaptability. It can be applied to winding control, load distribution under multiple motors driving the same load, and other applications.
Basic Functions
Item
Specification
Maximum Frequency
V/F control: 0~3200Hz, Vector control: 0~300Hz
Carrier Frequency
0.5kHz~16kHz; Automatic carrier frequency adjustment based on load characteristics
Input Frequency Resolution
Digital setting: 0.01Hz; Analog setting: 0.025% of maximum frequency
Control Method
Open-loop vector control (SVC); V/F control
Starting Torque
0.5Hz / 150% (SVC)
Speed Regulation Range
1:200 (SVC); 1:50 (V/F)
Speed Stability Accuracy
±0.5% (SVC)
Torque Control Accuracy
±5% (SVC)
Overload Capacity
150% rated current for 60s; 180% rated current for 3s
Three types: Linear type; Multi-point type; N-th power type / V/F curve (1.2 power, 1.4 power, 1.6 power, 1.8 power, 2nd power)
V/F Separation
2 types: Full separation, Semi-separation
Acceleration/Deceleration Curve
Linear or S-curve acceleration/deceleration mode; 4 types of acceleration/deceleration times, acceleration/deceleration time range 0.0~6500.0s
DC Braking
DC braking frequency: 0.00Hz ~ Maximum frequency, Braking time: 0.0s~36.0s, Braking action current value: 0.0%~100.0%
Jog Control
Jog frequency range: 0.00Hz~50.00Hz; Jog acceleration/deceleration time: 0.0s~6500.0s
Simple PLC, Multi-speed Operation
Achieve up to 16-speed operation via built-in PLC or control terminals
Built-in PID
Facilitates closed-loop control for process control
Automatic Voltage Regulation (AVR)
Automatically maintains constant output voltage when grid voltage fluctuates
Over-voltage/Over-current Stall Control
Automatically limits current and voltage during operation to prevent frequent over-voltage/over-current trips
Fast Current Limiting Function
Minimizes over-current faults to protect normal inverter operation
Torque Limit and Control
"Ride-through" characteristic, automatically limits torque during operation to prevent frequent over-current trips; Torque control achievable in vector control mode
Personalized Functions
Power-on Peripheral Safety Self-check
Enables safety check of peripheral devices (e.g., grounding, short circuit) upon power-up
Common DC Bus Function
Enables multiple inverters to share a common DC bus
QUICK Key Function
Five menu mode selections: Basic menu, Advanced menu, Monitor menu, Verify menu, User-defined menu
MF.K Key Function
Programmable key: Command channel switching / Forward/Reverse rotation / Jog operation function selection
Textile Swing Frequency Control
Multiple triangular wave frequency control functions
Timing Control
Timing control function: Setting time range 0h~65535h
Operation
Operation Command Channel
Three channels: Operation panel setting, Control terminal setting, Serial communication port setting. Switchable via multiple methods
Frequency Source
10 types of frequency sources: Digital setting, Analog voltage setting, Analog current setting, Pulse setting, Serial port setting. Switchable via multiple methods
Auxiliary Frequency Source
10 types of auxiliary frequency sources. Flexible realization of auxiliary frequency fine-tuning, frequency synthesis
Input Terminals
"Five digital input terminals, one of which can be used as high-speed pulse input, input frequency up to 100kHz. (Expandable to seven) Compatible with active PNP or NPN input methods.
Two analog input terminals, one can only be used for voltage input, the other can be used for voltage or current input. (One voltage input terminal expandable)"
Output Terminals
"One high-speed pulse output terminal (optional open collector type), 0kHz~100kHz square wave signal output. Can output physical quantities such as set frequency, output frequency. One digital output terminal (expandable to two); One relay output terminal (expandable to two); One analog output terminal (expandable to two), selectable 0mA~20mA or 0V~10V, can output physical quantities such as set frequency, output frequency."
Virtual I/O
5 virtual DI, 5 virtual DO
Display and Keypad Operation
LED Display
Displays parameters
Parameter Copy
Quick parameter copying achievable via LCD operation panel selection
Key Lock and Function Selection
Partial or full locking of keys, defining the scope of some keys to prevent misoperation
Protection Functions
Power-on motor short circuit detection, Input/Output phase loss protection, Over-current protection, Over-voltage protection, Under-voltage protection, Over-heat protection, etc.
Optional Accessories
Multi-function input/output expansion card, Braking components, Communication card
Environment
Installation Location
Indoors, not exposed to direct sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water, or salt
Altitude
Below 1000m
Ambient Temperature
-10℃~+40℃ (Derate if ambient temperature is between 40℃~50℃)
Humidity
Less than 95%RH, no condensation
Vibration
Less than 5.9m/s² (0.6g)
Storage Temperature
-20℃~+60℃
Motor Drive Control Mode
V/F Control Vector Control
Input-Output Characteristic
Parameter
Specification
Input Voltage Range
380/220V±15%
Input Frequency Range
50~60Hz
Output Voltage Range
0~Rated Input Voltage
Output Frequency Range
0~500Hz
Input-Output Characteristic
Parameter
Specification
Programmable Analog Input
0~10V input / 0/4~20mA input
Analog Output
0-10V / 4-20mA
Technical Performance Characteristics
Parameter
Specification
Overload Capacity
150% rated current for 60s / 180% rated current for 3s
Speed Regulation Ratio
1/200
Carrier Frequency
0.5~16kHz
Functional Characteristics
Parameter
Specification
Frequency Setting Method
Digital setting, Analog setting, 485 communication setting, Multi-speed and simple PLC setting, PID setting, etc.
PID Control, Terminal Identification Function
Function 1
Function 2
Function 3
PID Control Function
Swing Frequency Control Function
Length, Time Control Function
Simple PLC, Multi-speed Control Function (16 speeds)
Automatic Voltage Adjustment Function
Description
Automatically maintains constant output voltage when the grid voltage fluctuates.
